Quick Details

  • Type: Coating Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, paper
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: about 8kw
  • Packaging Type: Case
  • Packaging Material: Wood
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jiayuan compact hot melt glue coating machine
  • Model Number: JYT-320-600 compact hot melt glue coating machine
  • Dimension(L*W*H): 2200mm(L)*980mm(W)*1300mm(H)
  • Weight: 1500kg
  • Certification: CE, SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Jiayuan compact hot melt glue coating machine
  • Roll width: 370-650mm
  • Max. coating width: 320-600mm
  • Max.base material diameter: 400-800mm
  • Paper core diameter: 76mm
  • Unwind device: 2 sets
  • Rewind device: 1 set
  • Coating weight: 7-120g/square meter
  • Max.speed: 2-100m/min
  • Max. power: 9.8-18kw

Packaging & Delivery

Packaging Details wooden case with flexible film for Excellent quality compact hot melt glue coating machine

Machine video link:

http://youtu.be/Hs4Qf6RZqQ8    JYT-320 SHANGHAI EXPO

http://youtu.be/ImLx0RWrVwY    JYT-320 Narrow width high speed hot melt coating machine slot die+glue melt tank
http://youtu.be/CJ7Phgo7y5Y    JYT-320 narrow width label sticker hot melt coating machine( laboratory type)



Range of application - JYT-320 Jiayuan Excellent quality compact hot melt glue coating machine:
JYT-320 Excellent quality compact hot melt glue coating machine mainly used in producing double-side tape,cloth tape, doubleside foam tape,clean tape,kraft paper tape,masking tape,aluminun foil tape,fiber tape,shoes material,medical dressing tape,low temperature hot melt adhesive film,and different materials laminating such as non-woven,filter material ,medicine materials,etc,

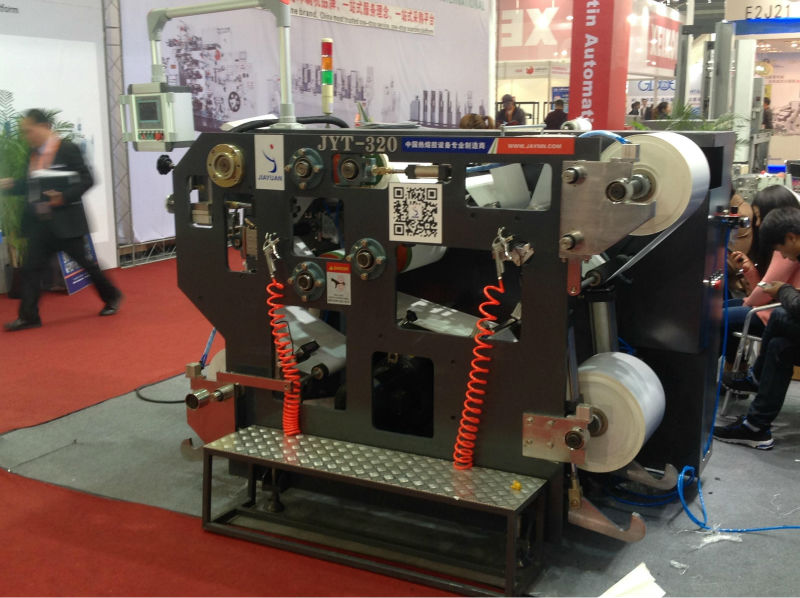

Main picture of JYT-320 Jiayuan Excellent quality compact hot melt glue coating machine :



 What products can be done by Jiayuan Excellent quality compact hot melt glue coating machine:

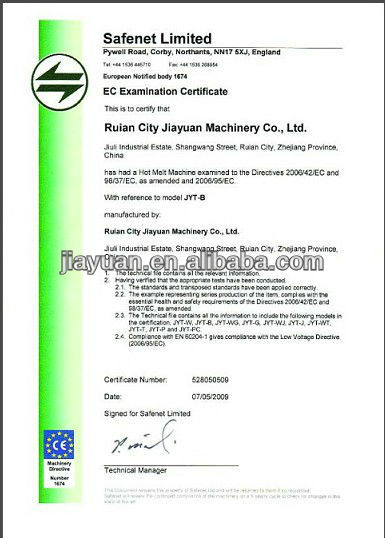

Certificate of Jiayuan Excellent quality compact hot melt glue coating machine :
